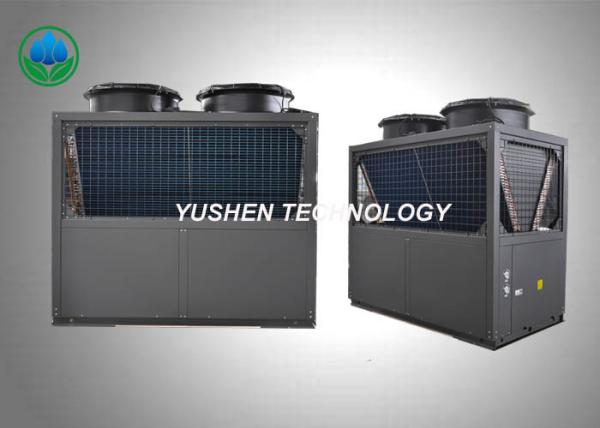

    Cold Climate Heat Pump Residential Central Air Conditioning Units 23.5 Kw Input Power

    Ask Lasest Price
    Brand Name : Yushen
    Model Number : SDNA-090YB
    Certification : CCC, ISO, Energy Concervation Product
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 10 sets/day
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Cold Climate Heat Pump Residential Central Air Conditioning Units 23.5 Kw Input Power

    Commercial Cold Climate ASHP for Cental Heating Station of Residential Block


    Charaters

    1.Working air temperature range:-25℃to 45℃.

    2.Copeland Enhanced vapour injection (EVI) technology scroll compressor with high COP in cold area.

    3. Max water outlet temperature: 60℃.

    4. Working mode is changeable between heating and hot water by 3-way valve.

    5. Linkage function of heat pump ON/OFF controlled by external controlling system.

    6. Anti-freeze function.


    Parametercode name.pdf

    ModelSDNA-090YB
    Compressor capacity30HP
    FunctionHeat
    Electricity380V 3N-50Hz
    Working conditions-25~+45
    DataHeataNominal capacityKW56.2
    Input powerKW23.4
    COP/2.4
    Heating IPLV(H)2.7
    A7W35cKW/COP90.0/4.2
    A2W35KW/COP79.0/3.20
    A-7W35KW/COP63.2/3.0
    A-15W55KW/COP56.2/1.97
    A-20W45KW/COP47.2/2.04
    Max. running currencyA70
    Compressor quantityset4
    Refrigerant/charging quantity kg/R22/5*4
    Air blow type/Top
    Water pipe diametermm50
    Rating flowm³/h12.6
    Water side pressure losskPa≤45
    Noise leveldB(A)62
    Overall dimensions(L×W×H)mm2100×1100×2080
    Weightkg830

    Applications residential communities central heating station di...

    • It is suitable for the heating of office building, hotel and residential community.
    • A central heating station with inteligent control
    • The ender indoor could be AC fans, floor coil or radiators
    • In winter it provide water of 50℃ for heating to the ender to produce heat

    Yushen Products Features


    • Yushen air source heat pump is 35% more powerful than other products, long heating time and less defrosting time
    • More than 20 items testing and 100% automatic line testing
    • No capacity decay under low temperature, keep high COP in winter
    • Quality Components such as Copeland compressor, Danfoss valves
    • Over 6 million heating area' project all over China
    • Jet Boost compressor, high efficient and environmental-friendly, even in -25C can work in high COP
    • Fan of heat exchanger is big diameter Jagged type, which increase the air flow tangent length when air going through fans, reduce noise; When the air volume is increased, the heat exchanger is more evenly.
    • Multi-throttle channel design is accurate.
    • Multiple energy-saving devices in a single system, precise control of refrigerant flow, enabling the unit to maximize heat/cooling capacity and maximum energy efficiency in various working environments, reducing operating costs

    • The water side shell and tube heat exchanger have high efficiency and reliability.
    • The industry's leading refrigerant distribution technology can effectively improve the uniformity of gas-liquid two-phase fluid distribution into heat transfer tubes, improve the utilization of heat exchange tubes, and achieve efficient heat transfer.

    • Large-area hydrophilic aluminum heat exchangers increase the heat production.

    Air Source heat Pump VS other heating methods
